8x higher 10 dBi. 100 higher or double 6 dBi.
Basic Antenna Theory Dbi Db Dbm Db Mw News Fmuser Fm Tv Broadcast One Stop Supplier
P1 P210log10 P1 P2 dB 10log10 P1 1 W.
Dbi to dbm. For a 13 dBi gain antenna. P dBm 10 log 10 P W 1W 30 For example. DBm decibels referenced to milliwatts.
We measure the transmitter power in dBm the antenna gain in dBi and the antenna cable manufactures give us the cable loss in dB per foot of cable. This means decibels of gain relative to a standard half-wave dipole antenna. Refers to decibels as a relative measure of milliwatts.
Gain of 10 dB Gain of 10 dBi The reason people specify dBi sometimes is that other relative values are sometimes specified like dBd. The power in dBm is equal to the base 10 logarithm of the power in watts W plus 30dB. Power on a load depends on the applied voltage and impedance of the load.
The power level meets the requirements - less than 20 dBm. 4x higher or quadruple 9 dBi. P1G1L1 P2 10log10 P1G1L1 1 W 10log10 P2 1 W P1dBWG1 dB L1 P2dBW Subtracting two powers dBW or dBm which is equivalent to computing their ratio dB.
Likewise adding or subtracting dB to dBm yields a number in dBm. 4 watt amp into a 5 dbi antenna 771 watts 4 watt amp into a 6 dbi antenna 970 watts 1 4 watt amp into a 9 dbi antenna 1937 watts 2 4 watt amp into a 12 dbi antenna 3865 watts 3 4 watt amp into a 15 dbi antenna 77128 watts 4 8 watt amp into a 5 dbi antenna 15425 watts 8 watt amp into a 6 dbi antenna 1941 watts 2. Enter the power in one of the text boxes and press the Convertbutton.
Same or 100 no gainloss 1 dBi. DBm or dB mW is the power relative to 1 milliwatt. The amount of strength measured in dBm will determine the signal booster that will cover the area you need.
Therefore are two different quantities. For example if the power of A is 30 dBm and that of B is 0 dBm then A is 30 dBm - 0 dBm larger than B 10 lg1000 mW - 10 LG1 mW 30 dB. 12 higher or x 112 2 dBi.
The gain in power emitted by an antenna signal. The relative power emitted by an amplifier. DBm mW W 0 dBm 1 mW NA 1 dBm 126 mW NA 2 dBm 158 mW NA 3 dBm 2 mW NA 4 dBm 251 mW NA 5 dBm 316 mW NA 6 dBm 398 mW NA 7 dBm 501 mW NA 8 dBm 631 mW NA 9 dBm 794 mW NA 10 dBm 10 mW 001 W 11 dBm 1259 mW 001 W 12 dBm 1585 mW 002 W 13 dBm 1995 mW 002 W 14 dBm 2512 mW 003 W 15 dBm 3162 mW 003 W 16 dBm 3981 mW 004 W 17.
One half or 50 loss 0 dBi. This RF calculator has been developed by Compliance Engineering as a resource for individuals involved in EMC and RF compliance measurements. 13 rows - dBm 000001 W -20 dBm 00001 W -10 dBm 0001 W 0 dBm 001 W 10.
The following table provides conversions for wavelength from frequency VSWR from forward and reflected power and various other. 10x higher 13 dBi. DBi stands for decibel relative to isotrope.
DB gain or loss no inherent power just an adjustment to somthing with power dBi decimels referenced to an isotropic radiator. DBm or dBmW decibel milliwatt power ratio absolute power in decibels relative to 1 mW. 58 higher or x 158 3 dBi.
DBm decibels per milliwatt. As we continue to get into the more technical aspect of the cell phone booster and signal gain we need to discuss dBi and its meaning. 16 dBm 8 dBi 32 dB 1 dB 198 dBm ie.
Exceeded by 48 dBm. Starting with a power dBW or dBm you can add and subtract ratios dB or dBi as often as you like and you still have a power dBW or dBm. One quarter or 25 loss-3 dBi.
DBi decibels per isotropic dB isotropic is a measure of the forward gain of an antenna. Similar to dB dBi is a ratio. What is the power in dBm for power consumption of 100W.
Most antenna manufacturers market their product with the dBi rating because it. Both dBi and dBd are units representing power gain both of which are relative values but their reference benchmarks are different. Gain in dBi Meaning-10 dBi.
DBi is a bit unusual because you might think the i at the end implies some dimension but dBi expresses a ratio of antenna gain relative to an isotropic radiator. DBi or dB isotropic is the forward gain of an antenna compared to the hypothetical isotropic antenna which uniformly distributes energy in all directions. The difference between dB and dBm is that dB is used to connote a relative difference in power voltage current or signal strength between two points.
DBm is used to denote the absolute measurement of power or signal at a given point in a cable. Wavelength dBm dBuV W dBuVm mWcm2 pJcm2 V VSWR. DBm 10log₁₀P OUT 1mW where P OUT is measured in mW.
One tenth or 10 loss-6 dBi. 20x higher 20 dBi. Convert decibel-milliwatts to milliwatts watts decibel-watts.
The gain of a half-wave dipole is 215 dBi. And the gain of an isotropic radiator is just 1 dimensionless by definition so dBi are also dimensionless. We can then start with the transmitters dBm value subtract the dB loss of the cable and add the dBi value of.
16 dBm 13 dBi 32 dB 1 dB 248 dBm ie.
What Is The Difference Between Dbu Dbm Dbuv And Other Field Intensity Units Softwright Llc
Lora Lorawan Tutorial 5 Decibel Dbm Dbi Dbd Youtube

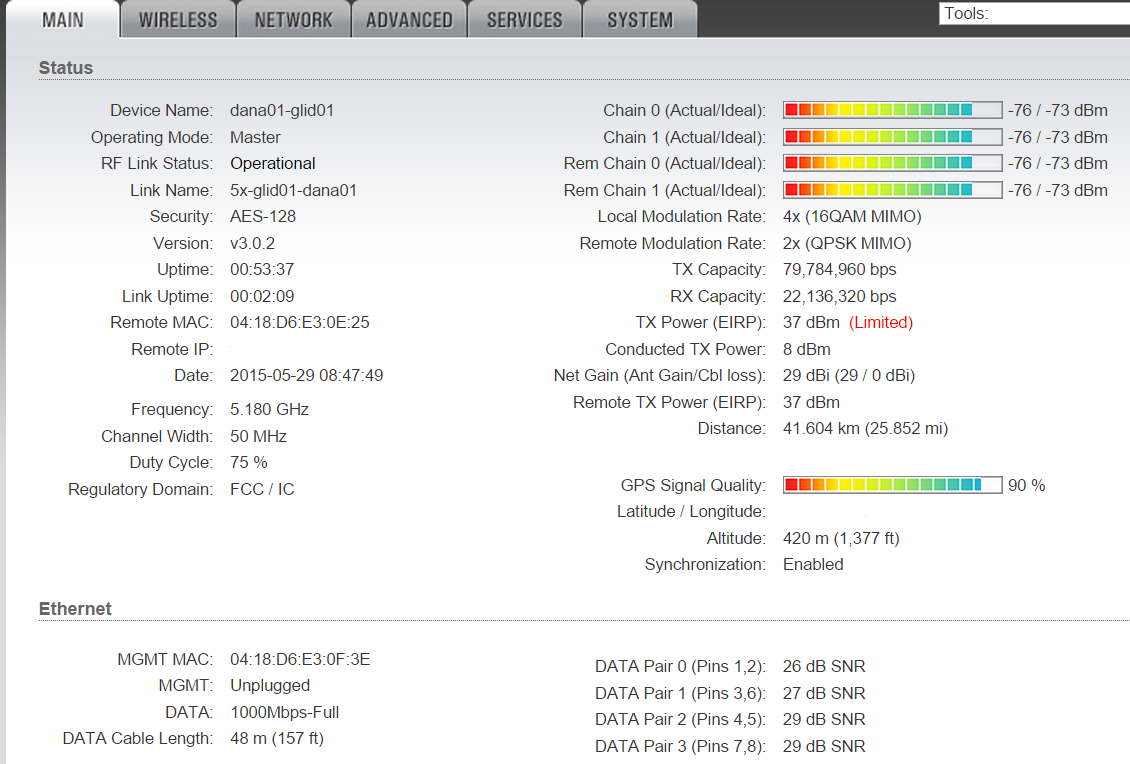

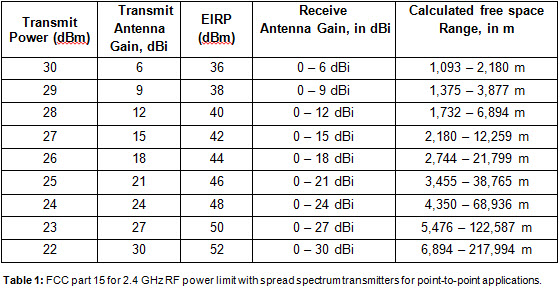

Dbi To Power Conversion

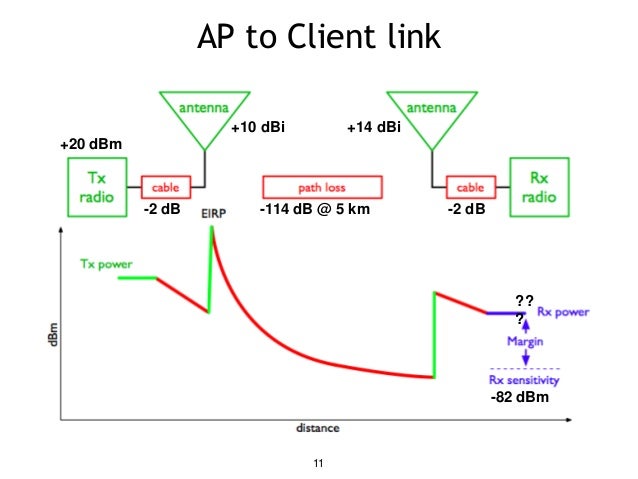

Link Budget Calculation
